Código: A5HM-D

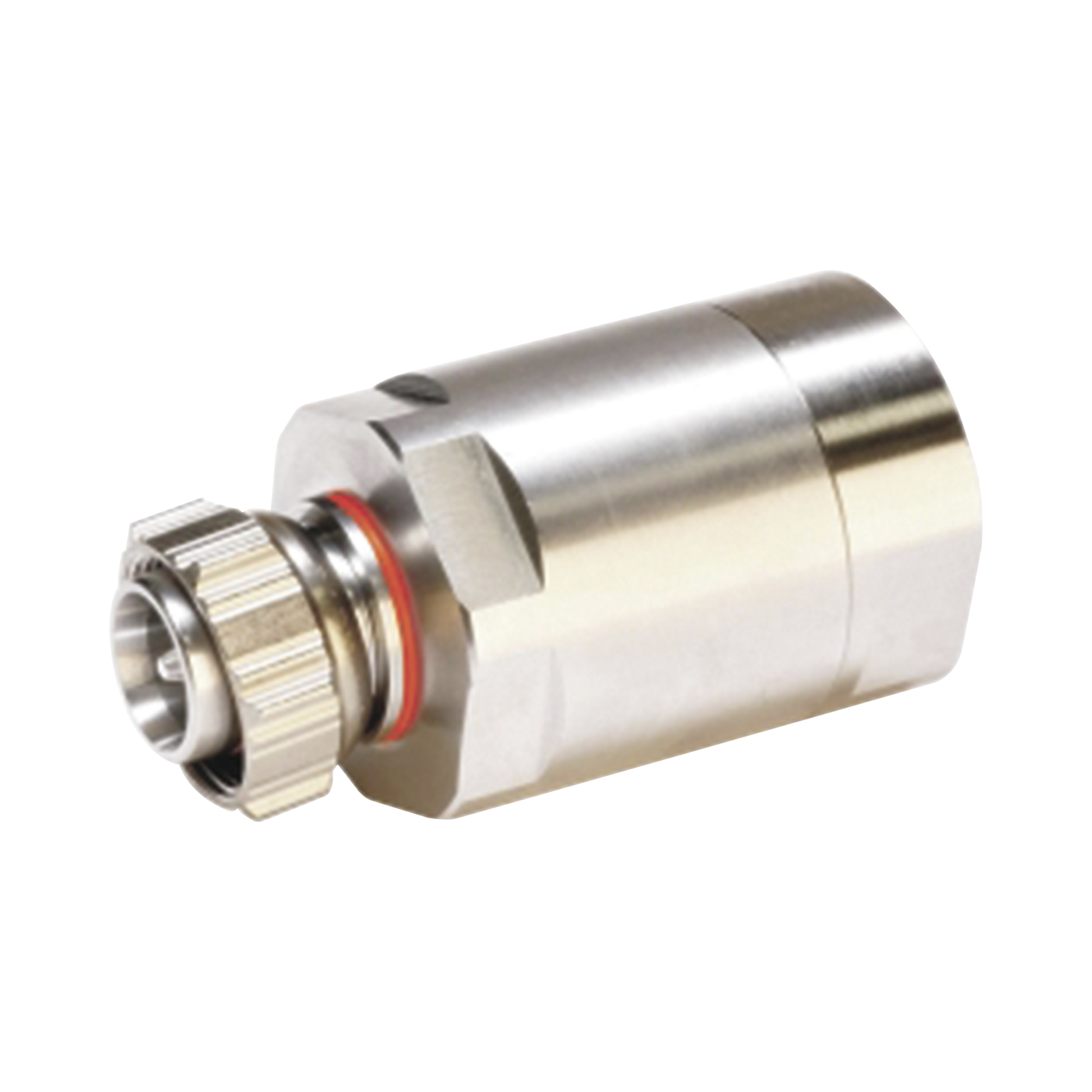

Conector 4.3-10 Macho Para Cable de 7/8 AVA5-50 y AVA5-50FX

$ 717.66 MXN
$ 717.66 MXN
-0%

Precio base: $ 717.66 MXN

IVA (16%): $ 114.83 MXN

Total: $ 832.49 MXN
Solo 0 ¡Artículos en stock! ¡Agotado!
código fiscal: 39121433

Pago seguro

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Descripción

General Specifications

  • Interface: 4.3-10 Male
  • Body Style: Straight
  • Mounting Angle: Straight
  • Ordering Note: CommScope® standard product (Global)
Electrical Specifications
  • Connector Impedance: 50 ohm
  • Operating Frequency Band: 0 – 5000 MHz
  • Cable Impedance: 50 ohm
  • 3rd Order IMD Dynamic Test Method: Two +43 dBm carriers
  • 3rd Order IMD, typical: -166 dBc @ 1800 MHz
  • 3rd Order IMD Test Method: Two +43 dBm carriers
  • RF Operating Voltage, maximum (vrms): 1415.00 V
  • dc Test Voltage: 4000 V
  • Outer Contact Resistance, maximum: 1.50 mOhm
  • Inner Contact Resistance, maximum: 0.40 mOhm
  • Insulation Resistance, minimum: 5000 MOhm
  • Average Power: 3.0 kW @ 900 MHz
  • Peak Power, maximum: 40.00 kW
  • Insertion Loss, typical: 0.05 dB
  • Shielding Effectiveness: -130 dB
Conector 4.3-10 Macho Para Cable de 7/8 AVA5-50 y AVA5-50FX
Conector 4.3-10 Macho Para Cable de 7/8 AVA5-50 y AVA5-50FX
